This program and related scripts are available as a tarball or a zip file
BGAOL is an updated version of the program ITERATE that finds cells that are "close" to the cell given, in order to help find the Bravais lattice of highest symmetry consistent with the submitted cell. A central problem in the solution of every crystal structure is to determine the correct Bravais lattice of the crystal. Many methods have been described for finding the correct Bravais lattice. ITERATE is based on the G6 space approach of Andrews and Bernstein [1] An important alternative is Zimmermann and Burzlaff's DELOS [3] based on Delaunay reduction. DELOS has no explicit distance metric. BGAOL is a major revision to ITERATE informed by the analysis of the 15 5-dimensional boundary polytopes of the Niggli reduced cell cone and the associated transformation matrices and projectors [2].
Bravais General Analysis of Lattices (BGAOL) is a program written in Fortran that starts with a given experimentally determined cell and finds cells of all possible symmetries that are close enough to the starting cell to be worth considering as alternative. For each of the alternative, the International Tables Niggli Lattice Character is given as well as the Bravais lattice type. BGAOL replaces the existing program ITERATE, making use of a better understanding of the geometry of the space of Niggli-reduced cells [1].
Correct identification of the Bravais lattice of a crystal is an important early step in structure solution. Niggli reduction is a commonly used technique. In [2] we investigated the boundary polytopes of the Niggli-reduced cone in the six-dimensional space G6 by organized random probing of regions near 1-, 2-, 3-, 4-, 5-, 6-, 7- and 8-fold boundary polytope intersections. We limited our consideration of valid boundary polytopes to those avoiding the mathematically interesting but crystallographically impossible cases of zero length cell edges. Combinations of boundary polytopes without a valid intersection or with an intersection that would force a cell edge to zero or without neighboring probe points are eliminated. 216 boundary polytopes are found. There are 15 5-D boundary polytopes of the full G6 Niggli cone, 53 4-D boundary polytopes resulting from intersections of pairs of the 15 5-D boundary polytopes, 79 3-D boundary polytopes resulting from 2-fold, 3-fold and 4-fold intersections of the 15 5-D boundary polytopes, 55 2-D boundary polytopes resulting from 2-fold, 3-fold, 4-fold and higher intersections of the 15 5-D boundary polytopes, 14 1-D boundary polytopes resulting from 3-fold and higher intersections of the 15 5-D boundary polytopes. The classification of the boundary polytopes into 5-, 4-, 3-, 2- and 1-dimensional boundary polytopes corresponds well to the Niggli classification and suggests other possible symmetries.
| Class | Boundary | Condition | Special-Position Subspace | |
|---|---|---|---|---|
| Equal cell edges | 1 | all | $g_1 = g_2$ | $g_4 = g_5$ |
| 2 | all | $g_2 = g_3$ | $g_5 = g_6$ | |
| Ninety degrees | 3 | all | $g_4 = 0$ | $g_5 = g_6 = 0$ |
| 4 | all | $g_5 = 0$ | $g_4 = g_6 = 0$ | |
| 5 | all | $ g_6 = 0$ | $g_4 = g_5 = 0$ | |
| Face diagonal | 6 | + + + | $g_2 = g_4 $ and $ g_5 \html'≥' g_6$ | (none) |
| 7 | + + + | $g_2 = g_4 $ and $ g_5 < g_6$ | $g_5 = g_6/2$ | |
| 8 | - - - | $g_2 = -g_4$ | (none) | |
| 9 | + + + | $g_1 = g_5 $ and $ g_4 \html'≥' g_6$ | (none) | |
| A | + + + | $g_1 = g_5 $ and $ g_4 < g_6$ | $g_4 = g_6/2$ | |
| B | - - - | $g_1 = -g_5$ | (none) | |
| C | + + + | $g_1 = g_6 $ and $ g_4 \html'≥' g_5$ | (none) | |
| D | + + + | $g_1 = g_6 $ and $ g_4 < g_5$ | $g_4 = g_5/2$ | |
| E | - - - | $g_1 = - g_6$ | (none) | |
| Body diagonal | F | - - - | $g_1+g_2+g_3+g_4+g_5+ g_6 = g_3$ | $g_1-g_2-g_4+g_5=0$ |
| Roof/ Niggli Symbol |
IT Lattice Char |
Bravais Lattice Type |
G6 Subspace |
G6 Boundary Polytope |
Roof/ Niggli Symbol |
IT Lattice Char |
Bravais Lattice Type |
G6 Subspace |
G6 Boundary Polytope |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 44A | 3 | $cP$ | $(r,r,r,0,0,0)$ | $12345 = 12{3↖\text'^'} = 12{4↖\text'^'} = 12{5↖\text'^'}$ | 51A | 16 | $oF$ | $(r,r,s,-t,-t,-2r+2t)$ | $1F1' = {1↖\text'^'}F$ | |
| 44C | 1 | $cF$ | $(r,r,r,r,r,r)$ | 12679ACD | 51B | 26 | $oF$ | $(r,s,t,r/2,r,r)$ | $ADA' = {A↖\text'^'}D$ | |
| 44B | 5 | $cI$ | $(r,r,r,-2r/3,-2r/3,-2r/3)$ | $12F2'F' = 1{2↖\text'^'}{F↖\text'^'}$ | 52A | 8 | $oI$ | $(r,r,r,-s,-t,-2r+s+t)$ | 12F | |
| 45A | 11 | $tP$ | $(r,r,s,0,0,0)$ | $1345 = 1{3↖\text'^'} = 1{4↖\text'^'} = 1{5↖\text'^'}$ | 52B | 19 | $oI$ | $(r,s,s,t,r,r)$ | 29C = 2AD | 45B | 21 | $tP$ | $(r,s,s,0,0,0)$ | $2345 = 2{3↖\text'^'} = 2{4↖\text'^'} = 2{5↖\text'^'}$ | 52C | 42 | $oI$ | $(r,s,t,-s,-r,0)$ | 58BF |
| 45D | 6 | $tI$ | $(r,r,r,-r+s,-r+s,-2s)$ | $12FF' = 12{F↖\text'^'}$ | 53A | 33 | $mP$ | $(r,s,t,0,-u,0)$ | 35 | |
| 45D | 7 | $tI$ | $(r,r,r,-2s,-r+s,-r+s)$ | $12F2' = 1{2↖\text'^'}F$ | 53B | 35 | $mP$ | $(r,s,t,-u,0,0)$ | 45 | |
| 45C | 15 | $tI$ | $(r,r,s,-r,-r,0)$ | 158BF | 53C | 34 | $mP$ | $(r,s,t,0,0,-u)$ | 34 | |
| 45E | 18 | $tI$ | $(r,s,s,r/2,r,r)$ | $2ADA' = 2{{A↖\text'^'}}D$ | 57B | 17 | $mI$ | $(r,r,s,-t,-u,-2r+t+u)$ | 1F | |
| 48A | 12 | $hP$ | $(r,r,s,0,0,-r)$ | 134E | 57C | 27 | $mI$ | $(r,s,t,u,r,r)$ | 9C = AD | |
| 48B | 22 | $hP$ | $(r,s,s,-s,0,0)$ | 2458 | 57A | 43 | $mI$ | $(r,s,t,-s+u,-r+u,-2u)$ | $FF' = {F↖\text'^'}$ | |
| 49C | 2 | $hR$ | $(r,r,r,s,s,s)$ | $121'2' = {1↖\text'^'}{2↖\text'^'}$ | 55A | 10 | $mC$ | $(r,r,s,t,t,u)$ | $11' = {1↖\text'^'}$ | |
| 49D | 4 | $hR$ | $(r,r,r,-s,-s,-s)$ | $121'2' = {1↖\text'^'}{2↖\text'^'}$ | 55A | 14 | $mC$ | $(r,r,s,-t,-t,-u)$ | $11' = {1↖\text'^'}$ | |
| 49B | 9 | $hR$ | $(r,r,s,r,r,r)$ | 1679ACD | 55B | 20 | $mC$ | $(r,s,s,t,u,u)$ | $22' = {2↖\text'^'}$ | |
| 49E | 24 | $hR$ | $(r,s,s,-s+r/3,-2r/3,-2r/3)$ | $2F2'F' = {2↖\text'^'}{F↖\text'^'}$ | 55B | 25 | $mC$ | $(r,s,s,-t,-u,-u)$ | $22' = {2↖\text'^'}$ | |
| 50C | 32 | $oP$ | $(r,s,t,0,0,0)$ | $345 = {3↖\text'^'} = {4↖\text'^'} = {5↖\text'^'}$ | 56A | 28 | $mC$ | $(r,s,t,u,r,2u)$ | $AA' = {A↖\text'^'}$ | |
| 50D | 13 | $oC$ | $(r,r,s,0,0,-t)$ | 134 | 56C | 29 | $mC$ | $(r,s,t,u,2u,r)$ | $DD' = {D↖\text'^'}$ | |
| 50E | 23 | $oC$ | $(r,s,s,-t,0,0)$ | 245 | 56B | 30 | $mC$ | $(r,s,t,s,u,2u)$ | $77' = {7↖\text'^'}$ | |
| 50A | 36 | $oC$ | $(r,s,t,0,-r,0)$ | 35B | 54C | 37 | $mC$ | $(r,s,t,-u,-r,0)$ | 5B | |
| 50B | 38 | $oC$ | $(r,s,t,0,0,-r)$ | 34E | 54A | 39 | $mC$ | $(r,s,t,-u,0,-r)$ | 4E | |
| 50F | 40 | $oC$ | $(r,s,t,-s,0,0)$ | 458 | 54B | 41 | $mC$ | $(r,s,t,-s,-u,0)$ | 58 | |

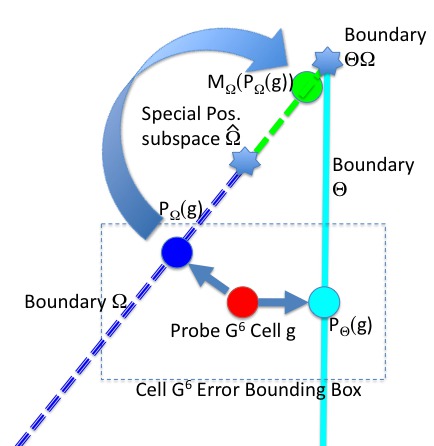

BGAOL starts with a probe cell $g$ in G6 and projects it onto each of the 15 boundaries,
keeping the projected images that lie within the error bounding box around the probe and within the Niggli
cone. In this case, 2 boundaries are shown, which we call $\text'Ω'$ and $\text'Θ'$. The
higher symmetry boundary $\text'ΩΘ'$ formed by the intersection of
$\text'Ω'$ and $\text'Θ'$ happens to lie outside of the error bounding box. However for each
of the cell projections it finds that are within the error bounding box, BGAOL applies the transformation
associated with the boundary, in this case $M_{\text'Ω'}$, and keeps the resulting cell
$M_{\text'Ω'}(P_{\text'Ω'}(g))$ if it is nearly reduced. Non-duplicate cells are added to the
list until no more are found, and then each cell is tested by projection for its distance from each Niggli
lattice character. The distance is computed as if working within the Niggli cone embedded in a higher
dimensional space, so that the distance from, say, $P_{\text'Ω'}(g)$ to
$M_{\text'Ω'}(P_{\text'Ω'}(g))$ is treated as zero. Thus, in the example shown, even though
$\text'ΩΘ'$ is outside the error bounding box, using the embedding distance, it is
sufficiently close to $M_{\text'Ω'}(P_{\text'Ω'}(g))$ for it to be accepted as a candidate.
The program on this Web page implements a search in G6 for the various Bravais lattices that the user's cell may fit. For each lattice type, the best metric match is reported. If the higher symmetry type is actually correct, then that is likely to be the best cell from which to start further refinement. However, the possibility exists that one of the rejected cells (which did not match as well) was actually the correct one to use. The reason for this ambiguity is experimental error and its propagation in the transformations of the lattices in the program. Fortunately, the rejected cells are usually quite similar to the accepted one.
A note on standard deviations: First, even in the best of circumstances, standard deviations of unit cell dimensions from 4-circle diffractometer data are always underestimated (by at least a factor of 2). In addition, the points chosen for the determination are often not well distributed (for example all in the first octant of orthorhombic lattices). These less than optimal choices cause substantial systematic error. The experimental errors are amplified in the mathematical conversions between various lattices that any lattice search program must perform. It is not a rare occurrence for angles to be incorrect by 0.5 degrees in initial unit cell determinations.
Note: Even in most well determined unit cells, the actual errors in the edge lengths is 0.2 to 0.5 parts per thousand. (Note that reproducibility of the measurements is substantially better, leading to the illusion that diffractometers produce excellent unit cell parameters). Use of standard deviations that are too small is a common reason for failure of Bravais lattice searches. For small molecules, 0.1 Angstroms is a reasonable error for the edge lengths, for proteins, 0.4 to 0.5 (or even more for preliminary measurements). Accurate unit cell parameters must by determined by a number of more complex methods and must include extrapolation to remove systematic effects. For an excellent summary, see "Xray Structure Determination", G.H.Stout and L.H.Jensen, Wiley, 1989.
[1] L. C. Andrews and H. J. Bernstein. Lattices and reduced cells as points in
6-space and selection of Bravais lattice type by projections. Acta Crystallogr., A44:10091018, 1988.
[2] L. C. Andrews and H. J. Bernstein. The Geometry of Niggli Reduction. arXiv,
1203.5146v1 [math-ph], 2012. arxiv.org/abs/1203.5146.
[3] H. Zimmermann and H. Burzlaff. DELOS A computer program for the
determination of a unique conventional cell. Zeitschrift fu r Kristallographie, 170:241 246, 1985.
